300 MHz, 2+1 Channel, 2.5 GS/s N-in-1 Digital Oscilloscope, 8-Bit Vertical Resolution
XDS3302
300 MHz, 2+1 Channel, 2.5 GS/s N-in-1 Digital Oscilloscope, 8-Bit Vertical Resolution
XDS3302
Art. number: OWON
Date published 07.03.2023
Price and Delivery
Fill the request form below to receive a price and delivery offer

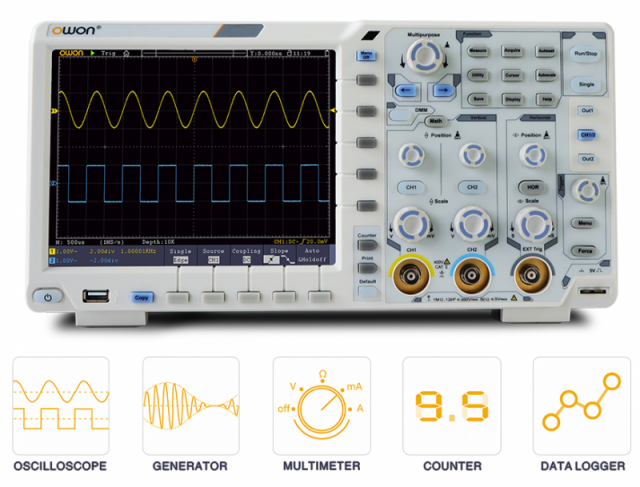

The Owon XDS3302 2+1 Channel N-in-1 Digital Storage Oscilloscope features an 8-bit vertical resolution, a bandwidth of 300 MHz, and a sample rate of 2.5 GS/s. The XDS330 includes a 25MHz/50MHz arbitrary waveform generator and a multimeter with data logging functionality.
- Bandwidth: 300 MHz
- Number of Channels: 2+1
- Sample Rate: 2.5 GS/s
- 8-bit resolution ADC
- Data logging function
- Multimeter with data logging function
-
- Bandwidth: 300 MHz
- Number of Channels: 2+1
- Sample Rate: 2.5 GS/s
- 8-bit resolution ADC
- Data logging function
- Multimeter with data logging function
- Dual-channel 25 MHz/50 MHz arbitrary waveform generator
- 40M record length, and 75,000 wfms/s waveform refresh rate
- Low background noise
- Vertical sensitivity in 1 mV/div - 10 V/div
- Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, R S232
- Bus decoding: I2C, SPI, R S232
- SCPI supported
- 8-inch 800 x 600 high resolution LCD
- Optional Built-In WIFI
- Multi-interface integration available:USB host, USB device, LAN, AUX, infrared controller, optional VGA port
- Applications:
- Electronic Circuit Debugging
- Circuit Testing
- Design and Manufacture
- Education and Training
- Automobile Maintenance and Testing
