Airly Pure PM Sensor
Airly Pure
Built for performance. Trusted for precision.

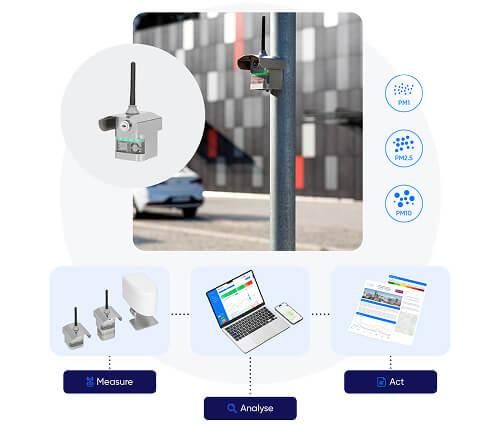

Airly Pure is a best-in-class, certified PM sensor that measures PM1, PM2.5 and PM10 with accuracy and reliability. Designed for effortless deployment anywhere, it operates independently via GSM connectivity and can be powered off-grid using solar panels. With seamless access to data through the Airly Data Platform, it’s the go-to solution for local authorities, businesses, and partners who need effortless, scalable air quality monitoring without infrastructure headaches.
Airly Pure measures three key pollutants (PM1, PM2.5, PM10) along with temperature, humidity, and pressure – all in real time, with certified precision.
The full technical specifications and description of the device can be found in the attached product brochure.
Measurements
|
|
Units |
Range |
Resolution |
Typical precision (R2) |
DQO - Typical U(exp) |
Operating life |
|
PM1 |
μg/m³ |
0 - 1,000 μg/m³ |
1 μg/m³ |
> 0.8 |
N/A
|
>3 years |
|
PM2.5 |
μg/m³ |
0 - 1,000 μg/m³ |
1 μg/m³ |
> 0.8 |
< 50% |
>3 years |
|
PM10 |
μg/m³ |
0 - 1,000 μg/m³ |
1 μg/m³ |
> 0.6 |
< 50% |
>3 years |
|
Temperature |
°C |
-40 - 80 °C |
0.1 °C |
> 0.9 |
N/A |
5 years |
|
Humidity |
%RH |
0-100 %RH |
0.1 %RH |
> 0.9 |
N/A |
5 years |
|
Pressure |
Pa |
300-1100 hPa |
0.1 hPa |
> 0.9 |
N/A |
5 years |
Operating working conditions
|
Operating temperature range |
-40 - 60 °C |
|
Operating RH range |
0 - 99 %RH |
Measurements frequency
|
Sampling interval |
1 - 2 seconds |
|
Averaging interval |
5 - 20 seconds |
|
Sending interval |
15 - 60 minutes |
Enclosure parameters and weight
|
Case material |
Stainless steel |
|
Dimensions |
74 x 77* x 84 mm * without antenna |
|
Dimensions |
440 g |
Power Supply and Energy Consumption
|
Supply Voltage |
5V supplied via the included 110/230V power adapter |
|
Average Power Consumption |
1.2 W |
