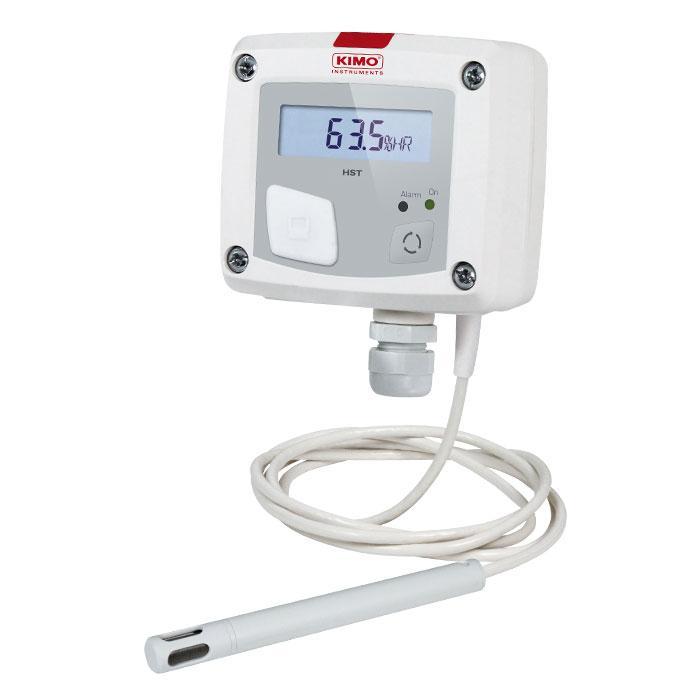

The KIMO HST is an electronic hygrostat designed to measure and control relative humidity and temperature in HVAC systems, ventilation installations, technical rooms, and other applications where automatic humidity regulation is required.

The instrument alternately displays temperature and relative humidity on its LCD screen, allowing convenient local monitoring of both parameters.

The relative humidity measurement range is 5 to 95 % RH. The temperature range depends on the selected version:

• Ambient model: 0 to +50 °C
• Duct-mount model: -20 to +80 °C
• Remote probe model: -20 to +80 °C

The KIMO HST features a programmable relay with two relative humidity thresholds, allowing automatic control of external equipment when preset humidity levels are reached. This makes it suitable for controlling humidifiers, dehumidifiers, fans, and other HVAC components.

The instrument is equipped with a 10-digit LCD display and a red LED indicator on the front panel for clear visual status indication.

The built-in RCR relay rated at 3 A / 230 Vac allows direct switching of external devices and control systems.

Configuration can be carried out using software or DIP switches, making it easy to adjust thresholds and operating parameters according to the specific application.

The KIMO HST is suitable for humidity control in HVAC systems, storage areas, technical rooms, production zones, air ducts, and building automation systems where automatic regulation of humidity levels is required.
