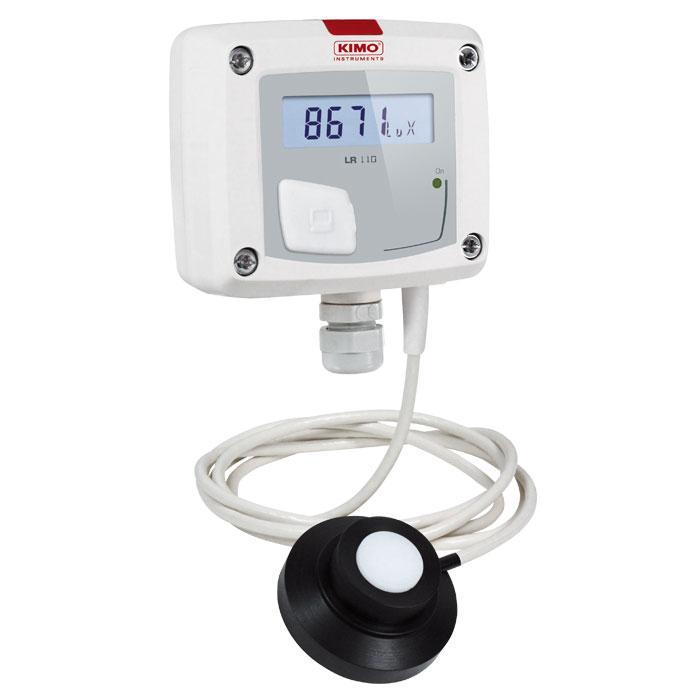

The KIMO LR 110 is a fixed sensor/transmitter designed for measurement and continuous monitoring of illuminance in indoor environments, public buildings, industrial facilities, HVAC applications, and building automation systems.

The instrument measures light intensity over a range of 0 to 10,000 lux, making it suitable for monitoring lighting levels in offices, warehouses, production areas, commercial premises, and other spaces where continuous illuminance measurement is required.

The KIMO LR 110 is available with or without a 10-digit LCD display, allowing users to choose between a version with local visualization of the measured value and a version intended primarily for signal transmission to an external control system.

For integration with BMS, PLC controllers, and other automation systems, the device provides an 0–10 V or 4–20 mA analogue output.

Configuration can be carried out using software or DIP switches, allowing convenient adjustment according to the requirements of the installation.

The housing is designed for simplified mounting. Its ¼-turn mounting system with wall-mount plate enables quick installation and easier access during maintenance.

The KIMO LR 110 is suitable for illuminance monitoring, automated lighting control, energy-efficiency applications, BMS integration, and building automation.

For more information:
https://www.kimo-instruments.com/en-INT/measuring-instruments/transmitters/lux-transmitters/lr-110
