KIMO LX 50 Lux Meter

KIMO LX 50

KIMO LX 50 Lux Meter

KIMO LX 50

Art. number:
Date published 10.08.2026
Unavailable
Price and Delivery
Fill the request form below to receive a price and delivery offer

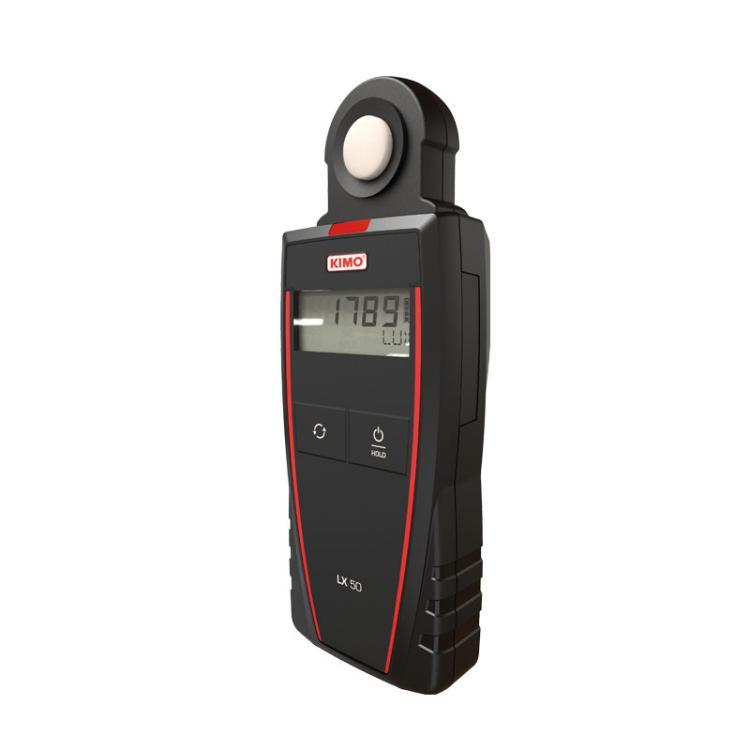

The KIMO LX 50 is a compact portable lux meter designed to measure light intensity in a wide range of indoor environments and workplaces. The instrument uses a built-in silicon photodiode light sensor to provide reliable illumination measurements.

The measurement range is 0 to 10,000 lux and 0 to 929 fc, making the LX 50 suitable for a broad range of lighting assessment applications.

The instrument features a built-in probe, simplifying everyday use and eliminating the need for an external light sensor.

The Hold function allows the current measured value to be frozen on the display for easier reading and recording of results.

For improved battery efficiency, the KIMO LX 50 includes an automatic shut-off function after 20 minutes of inactivity.

Thanks to its compact design and simple operation, the instrument is suitable for checking illumination levels in offices, production areas, warehouses, classrooms, public buildings, workplaces, and other indoor spaces.

The KIMO LX 50 is suitable for occupational safety specialists, engineers, technicians, inspectors, and service professionals carrying out lighting level checks and workplace illumination assessments.

The instrument is supplied with an adjustment certificate, confirming that its measurement performance has been checked and adjusted.



For more information:
https://www.kimo-instruments.com/en-INT/measuring-instruments/portable-instruments/lux-meters/lx-50

Parameter Value
Measured Parameter Light level
Units fc, lux, klx
Light Measurement Range 0.00–10,000.00 lux
Light Measurement Range 0.00–929.00 fc
Display 2-line display
Ingress Protection Rating IP54
Battery Life Up to 20 hours
Power Supply 4 × AAA LR03 1.5 V batteries
Protective Cover No
Interchangeable Module No
Length 71.5 mm
Width 34.2 mm
Height 192 mm
Weight 200 g
Operating Temperature 0 to +50 °C
Storage Temperature -10 to +70 °C
Applicable Standards 2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage
FT_portable_LX50_EN_... PDF, 687.8 KB Download
QSG-Portables_Classe... PDF, 1235.3 KB Download
