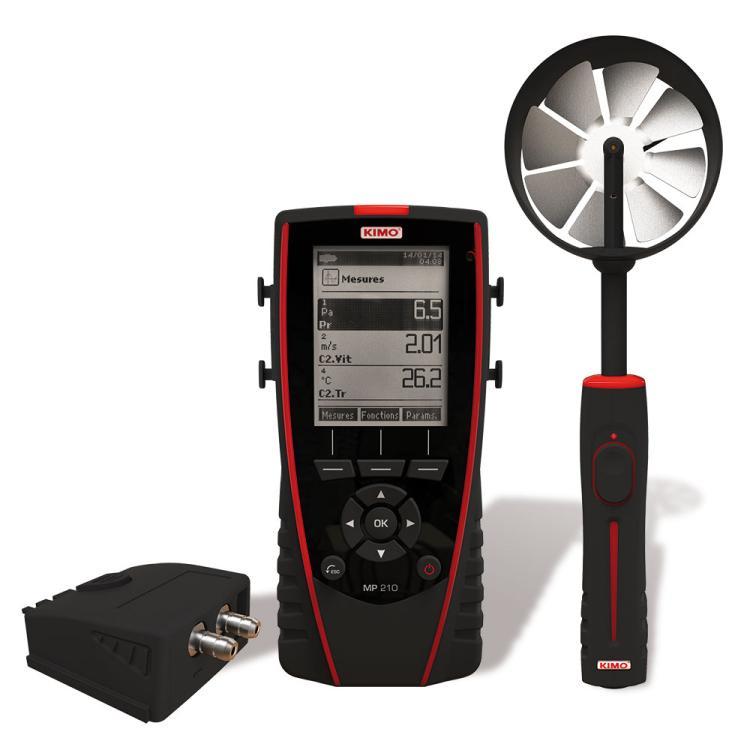

The KIMO MP 210 is a professional multifunction micromanometer designed for precise measurement and diagnostics of ventilation, air-conditioning, and industrial systems. The instrument can measure pressure, air velocity, airflow, temperature, tachometry, gas leaks, and carbon monoxide, with support for up to 6 simultaneous measurements.

The MP 210 is particularly suitable for HVAC applications where differential pressure, air velocity, and airflow must be analyzed in ducts, filters, air handling units, and other ventilation system components. When used with suitable probes and accessories, it can support system balancing, commissioning, troubleshooting, and maintenance.

One of the main advantages of the KIMO MP 210 is its support for interchangeable measurement modules, allowing the instrument to be configured according to the specific measurement task. This modular design makes it possible to cover a wide range of applications with a single device.

The instrument features two inputs for Pt100 temperature probes with a measurement range from -200 to +600 °C. This allows temperature measurements to be performed alongside pressure, air velocity, and airflow measurements.

Depending on the connected modules and probes, the MP 210 can perform up to six measurements simultaneously, making it suitable for comprehensive HVAC diagnostics and multi-parameter analysis. This capability helps reduce measurement time and simplifies comparison of several operating parameters at once.

For air velocity and airflow measurement, the micromanometer can be used with suitable differential-pressure accessories, including Pitot tubes, making it well suited for airflow measurements in ducts and ventilation systems.

The MP 210 is equipped with a large graphical display that provides clear visualization of measured values and allows several parameters to be monitored at the same time. This makes data interpretation easier during field service, commissioning, and system adjustment.

The instrument can be used for differential and static pressure measurement, air velocity, airflow, temperature, and other parameters related to ventilation and HVAC system performance. Depending on the selected configuration, additional functions for tachometry, gas leak detection, and carbon monoxide measurement are also available.

The KIMO MP 210 is intended for professional use by HVAC technicians, ventilation engineers, service specialists, energy auditors, and industrial maintenance professionals.

A calibration certificate is supplied with the instrument, confirming verification of its measurement performance.

For more information:
https://www.kimo-instruments.com/en-INT/measuring-instruments/portable-instruments/micromanometers/mp-210
