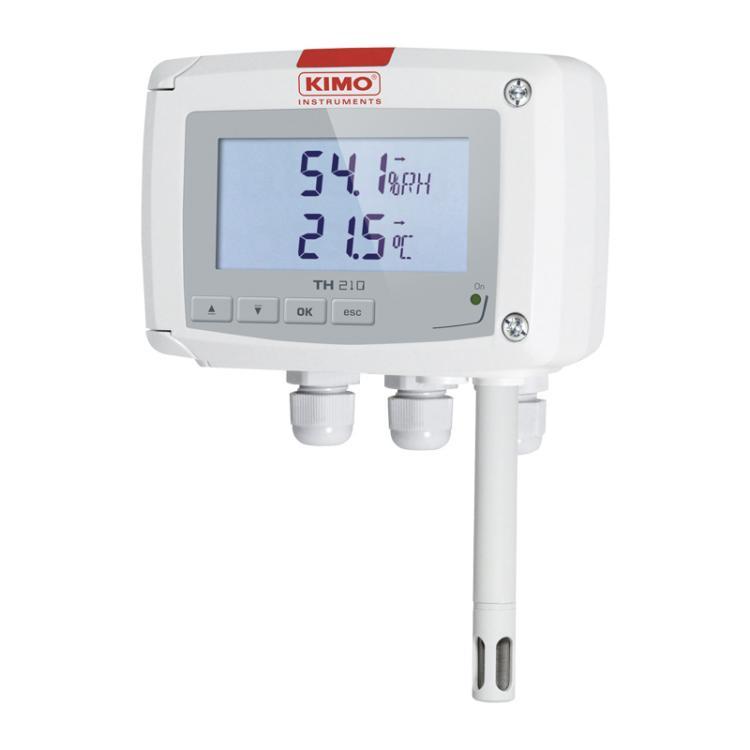

The KIMO TH 210-R is a fixed sensor/transmitter designed for continuous measurement and monitoring of relative humidity and temperature in HVAC systems, industrial installations, technical rooms, and other applications where reliable indoor climate control is required.

The instrument measures relative humidity from 0 to 100 % RH and is available in different configurations depending on the temperature range and probe type:

• Ambient model: temperature from 0 to +50 °C

• Remote polycarbonate probe: from -20 to +80 °C

• Remote stainless steel probe: from -40 to +180 °C

The TH 210-R is available with either a stainless steel or polycarbonate probe, allowing the most suitable configuration to be selected according to the installation and environmental conditions.

The instrument is available with or without a 2-line, 19-digit LCD display, providing local visualization of the measured values when required.

For integration into BMS, PLC controllers, and other automation systems, the transmitter provides analogue outputs of 0–5/10 V or 0/4–20 mA.

The Trend Indicator function provides a quick visual indication of whether the measured temperature or humidity is increasing, decreasing, or remaining stable.

The instrument also includes two relay outputs, which can be used to control alarms, fans, humidifiers, dehumidifiers, or other external equipment when configured threshold values are reached.

Installation is simplified by the ¼-turn mounting system with wall-mount plate, allowing fast installation and convenient access during maintenance.

The KIMO TH 210-R is suitable for humidity and temperature monitoring, HVAC system control, environmental condition management, industrial processes, storage areas, laboratories, and building automation applications.

For more information:
https://www.kimo-instruments.com/en-INT/measuring-instruments/transmitters/humidity-transmitters/th-210-r
