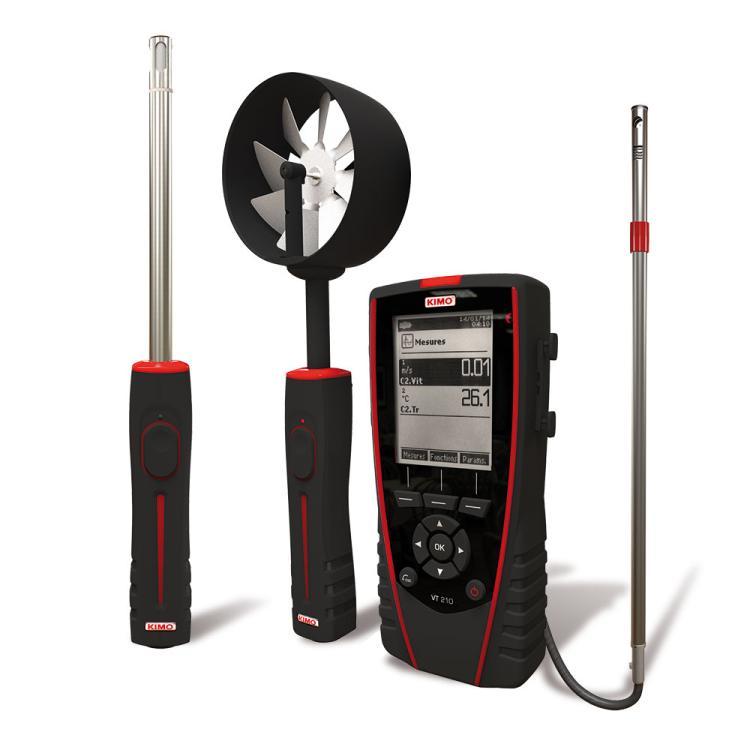

The KIMO VT 210 is a professional multifunction measuring instrument specifically designed for inspection, adjustment, commissioning, and diagnostics of ventilation and HVAC systems. Depending on the selected configuration, it can measure air velocity, airflow, temperature, and relative humidity in ducts and other HVAC applications.

The instrument supports interchangeable measurement modules, allowing its functionality to be adapted to different field requirements. This modular design makes the VT 210 suitable for both routine airflow checks and more advanced measurements involving several environmental parameters.

The KIMO VT 210 features two inputs for Pt100 temperature probes with a wide measurement range from -200 to +600 °C. This enables precise temperature measurements at different points within HVAC systems, industrial installations, and technical processes.

Depending on the connected probes and modules, the instrument can perform up to six measurements simultaneously. This multi-channel capability is particularly useful when several parameters or measurement points need to be monitored at the same time during system diagnostics and balancing.

The VT 210 also supports wireless communication between the instrument and compatible probes, allowing greater flexibility when positioning sensors in difficult-to-access areas, ducts, large ventilation systems, or remote measurement points.

The instrument is suitable for measuring air velocity and airflow in ventilation ducts, as well as monitoring temperature and humidity conditions. Different probes can be used depending on the selected model and the specific measurement task.

The combination of airflow, air velocity, temperature, and humidity measurement makes the KIMO VT 210 suitable for commissioning, balancing, maintenance, and troubleshooting of ventilation and air-conditioning systems. Typical applications include measurements in ducts, diffusers, air grilles, air handling units, and other HVAC components.

Its modular design, multi-channel measurement capability, and wireless probe communication make the VT 210 a versatile tool for HVAC technicians, ventilation engineers, energy specialists, and professionals involved in building services and environmental measurements.

A calibration certificate is supplied with the instrument, confirming verification of its measurement performance.
