LANDTEK LX-1261 / LANDTEK LX-1261L

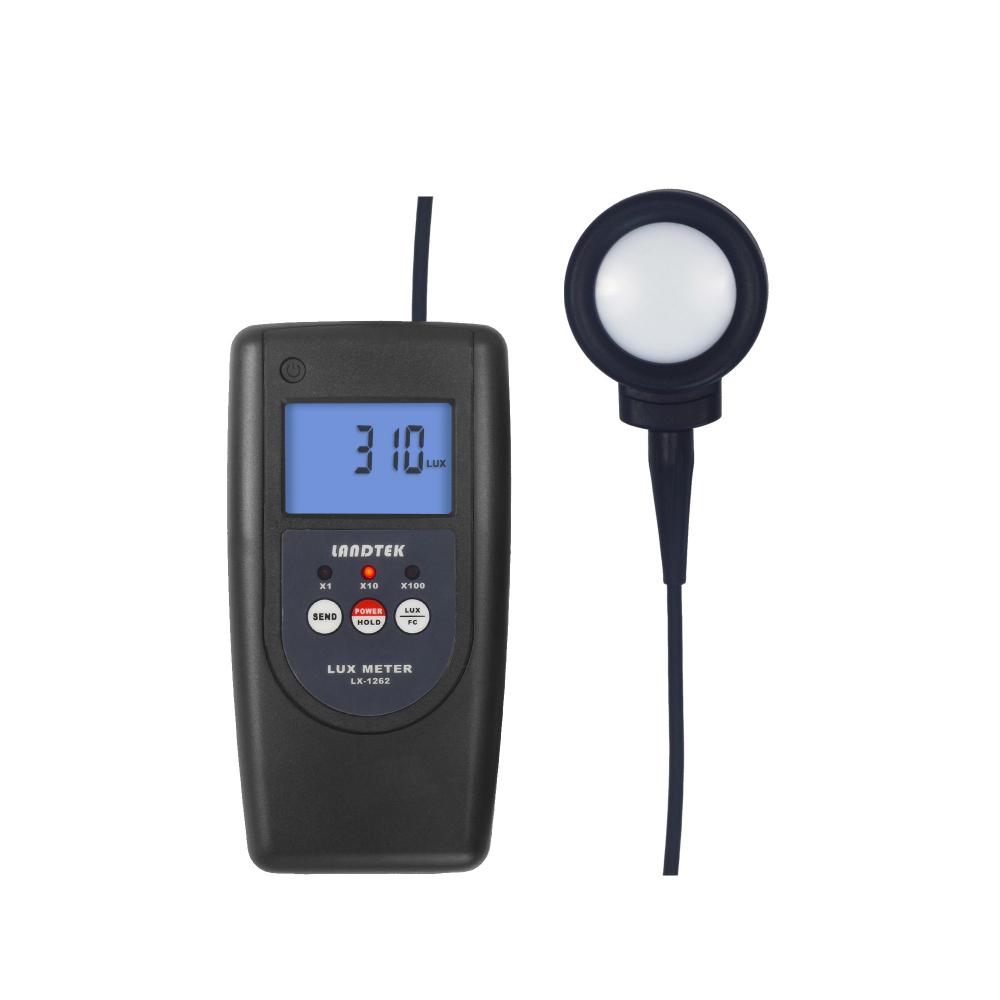

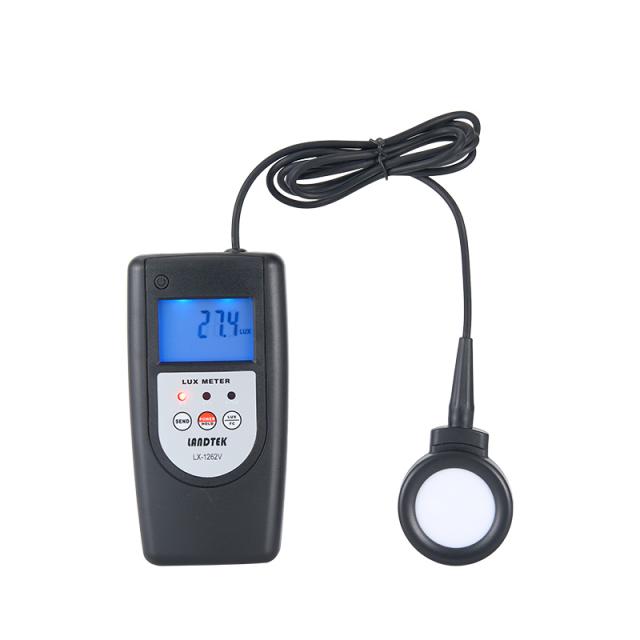

The LANDTEK LX-1261 / LX-1261L is a portable digital lux meter designed for measuring illuminance and brightness in a variety of applications.
The instrument supports measurements in both Lux (lx) and Foot Candle (FC), allowing convenient use with both metric and imperial lighting measurement systems.
The model is equipped with a digital display, providing direct and clear readings without the estimation errors associated with analog scales.

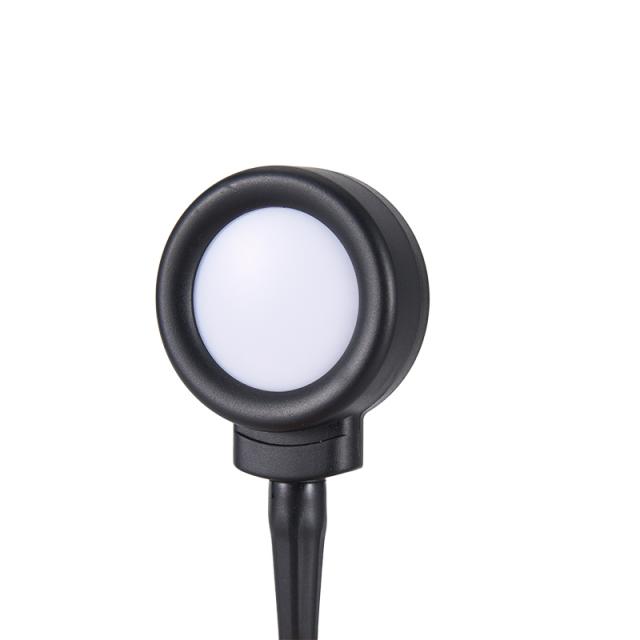

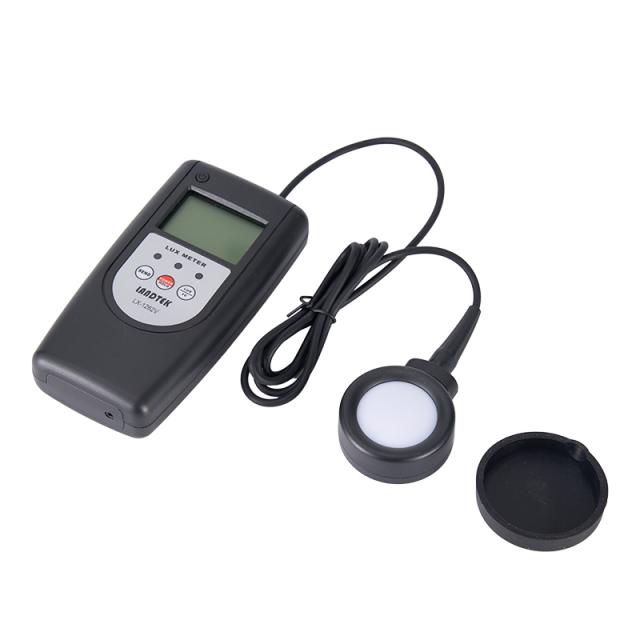

Thanks to its separate light sensor, the user can position the sensing head optimally relative to the light source, which makes measurements easier in different working conditions.
The LX-1261 / LX-1261L offers a wide measuring range and high resolution, together with a maximum value hold (Max Hold) function.
A built-in low battery indicator alerts the user when the power source needs to be replaced.
The housing is made of lightweight and durable ABS plastic and is ergonomically shaped for comfortable handheld use.

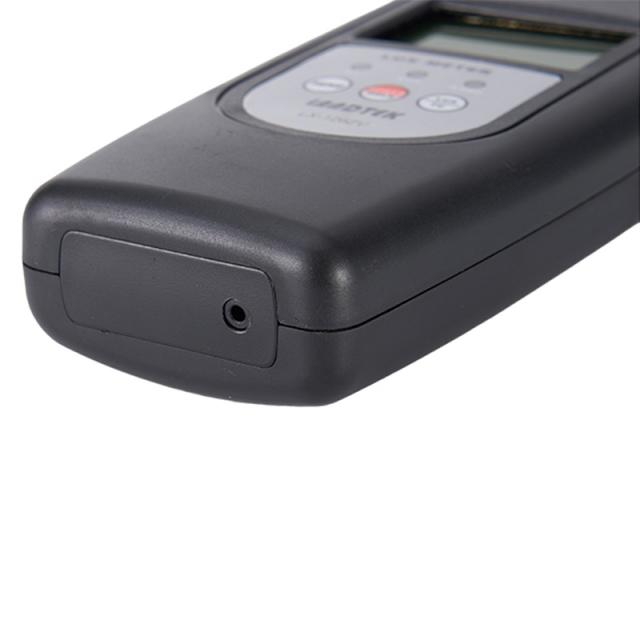

For data transfer to a computer, the instrument provides USB/RS-232 data output, with an optional Bluetooth data output also available.
The LX-1261L is designated by the manufacturer as a Low Illuminometer, indicating a version intended for measurements at lower illuminance levels.
The LANDTEK LX-1261 / LX-1261L is suitable for illuminance measurement and lighting control in offices, industrial facilities, warehouses, laboratories, public buildings, work areas, and other environments where reliable light-level measurement is required.
For more information:
Lux Meter LX-1261/Low Illuminometer LX-1261L - Guangzhou Landtek Instruments Co.,LTD
| Parameter | LX-1261 | LX-1261L |
|---|---|---|
| Display | LCD | LCD |
| Range – x1 Grade | 0.1–500.0 Lux | 0.01–50.00 Lux |
| Range – x10 Grade | 500.0–5000 Lux | 50.00–500.0 Lux |
| Range – x100 Grade | 5000–200,000 Lux | 500.0–20,000 Lux |
| Foot Candle Range | 0–20,000 FC | 0–2000 FC |
| Accuracy | ±(4% n + 5d) | ±(4% n + 5d) |
| Operating Temperature | 0 to +50 °C (32–122 °F) | 0 to +50 °C (32–122 °F) |
| Operating Humidity | < 80% RH | < 80% RH |

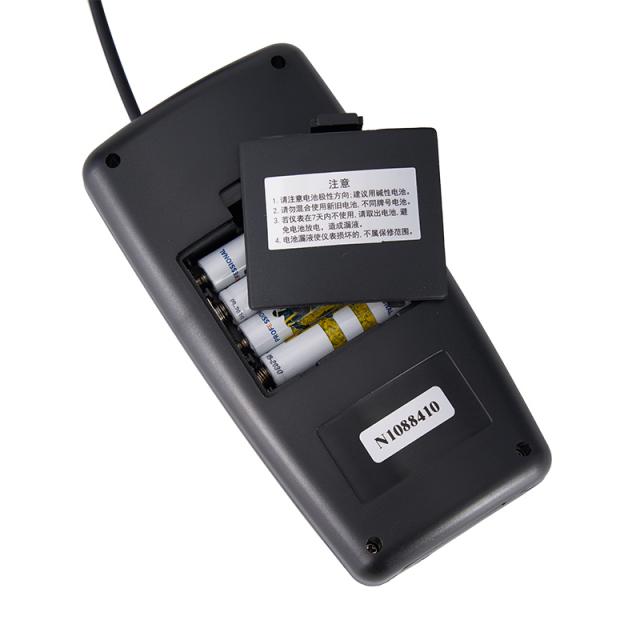

| Power Supply | 4 × 1.5 V AAA (UM-4) batteries | 4 × 1.5 V AAA (UM-4) batteries |
| Main Unit Dimensions | 140 × 72 × 34 mm | 140 × 72 × 34 mm |
| Sensor Dimensions | 96 × 58 × 16 mm | 96 × 58 × 16 mm |
| Weight | 200 g, including batteries | 200 g, including batteries |

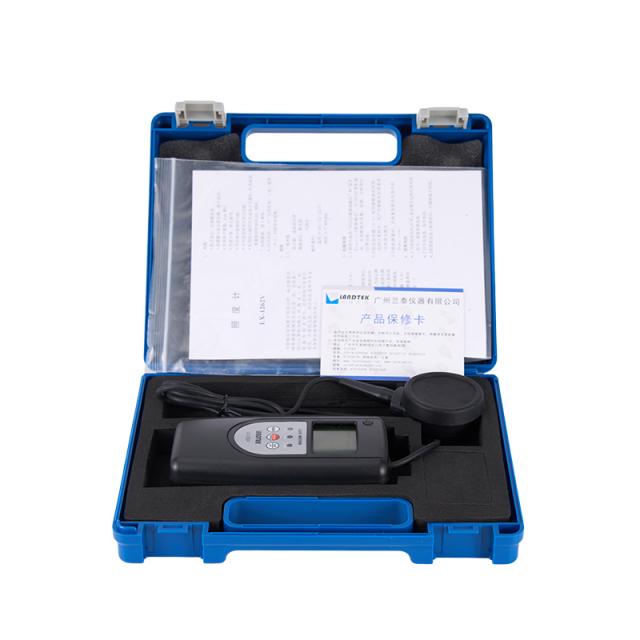

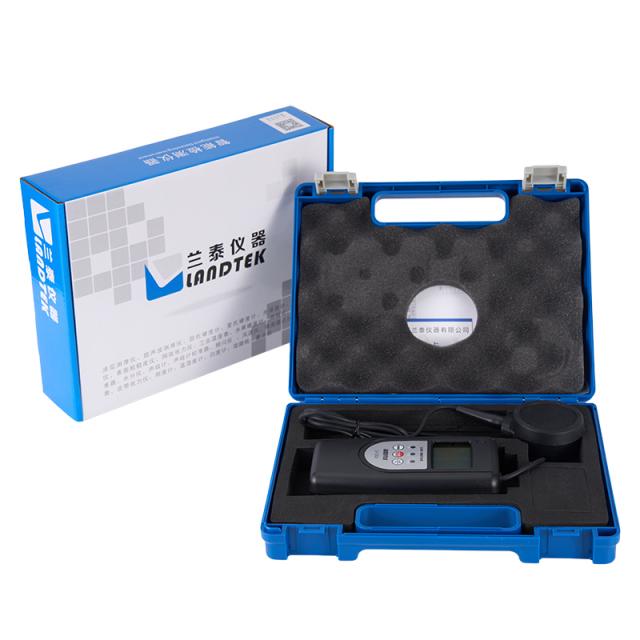

| Standard Accessories | Main unit, split-type sensor, operation manual, B04 carrying case | Main unit, operation manual, B04 carrying case |
| Optional Accessories | USB data cable with software, Bluetooth data adapter with software | USB data cable with software, Bluetooth data adapter with software |
