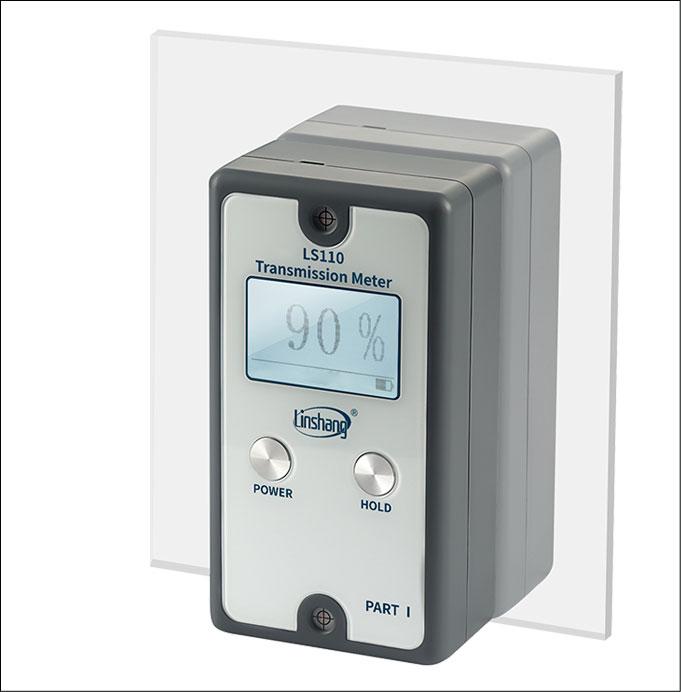

LS110 Light Transmittance Meter
LS110

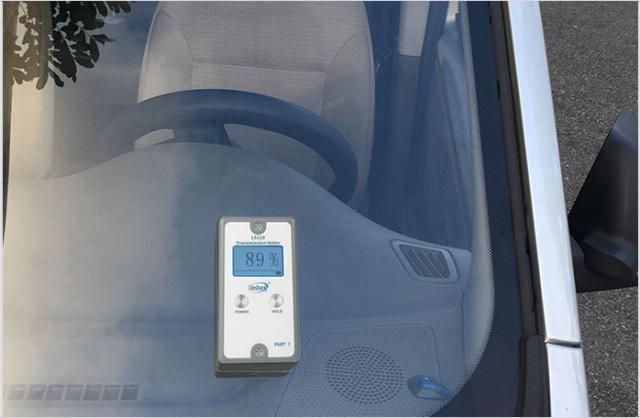

Test the VLT of automotive front windshield
Three-way test light source, strong anti-interference ability

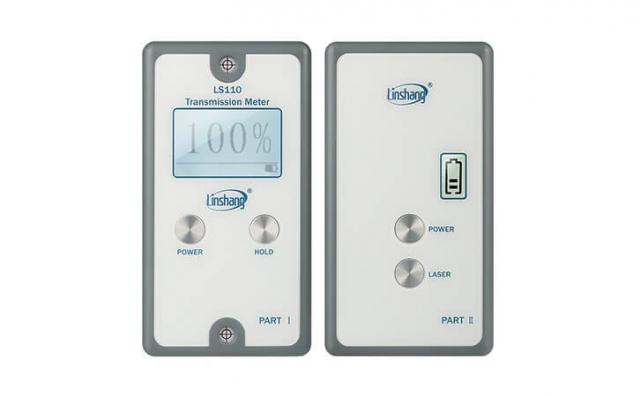

Separation of main and auxiliary machines
Enable to lock the data for easy reading
Linshang LS110 wireless split type light transmittance meter is mainly used for light transmittance detection of transparent materials such as glass, acrylic and film. This car window tint light transmittance meter has three independent test units. The displayed visible light transmittance is the average of three measurement data. The instrument use a visible light source to illuminate the tested transparent materials. The sensor detects the incident light intensity of the light source and the light intensity after passing through the tested transparent materials, expressed as a percentage.

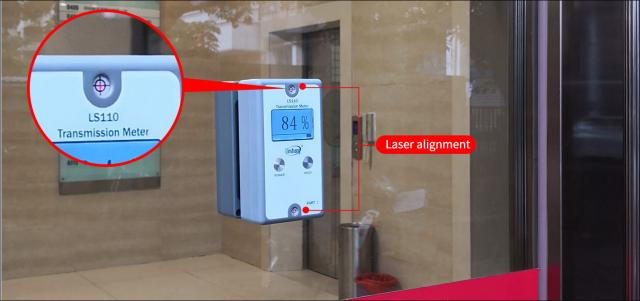

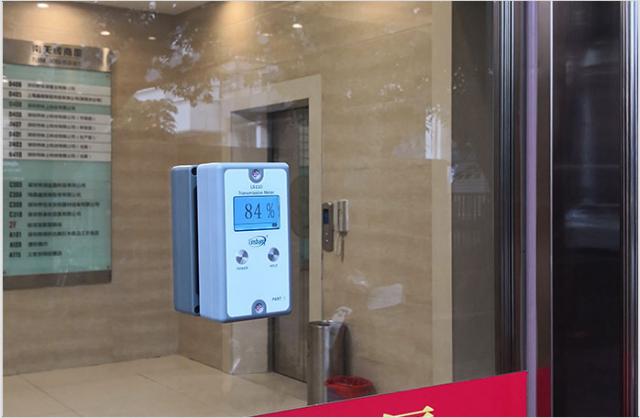

It is widely used in the transmittance test of installed materials such as automobile front shield and curtain wall glass.
| Parameter | Value |
|---|---|
| Spectral range | 380nm-760nm full wavelength, in line withCIE photopic luminosity function |
| Measurement accuracy | ± 2% (colorless and uniformtransparent materials) |
| Resolution | 0%~10%: 0.1%; 10%~100%: 1% |
| Test samplesize | Greater than 40mm*40mm |
| Power supply | Built-in lithium rechargeable battery |
| Dimension | 130mm × 70mm × 84mm (L*W*H) |
| Weight | 630g |
