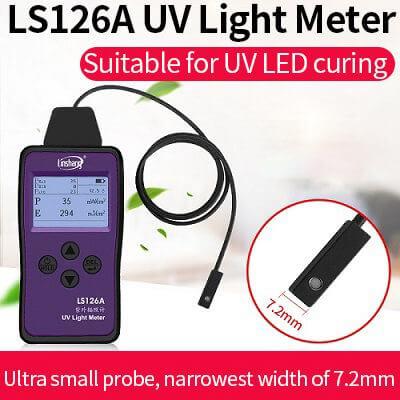

LS126A UV Light Meter
LS126A
Art. number:
Date published 10.07.2026
Price and Delivery
Fill the request form below to receive a price and delivery offer
Suitable for UV LED curing
Ultra-small probe, narrowest width of 7.2mm
Wide spectral range: 340nm-420nm
With a high-speed sampling speed of 2048 times per second

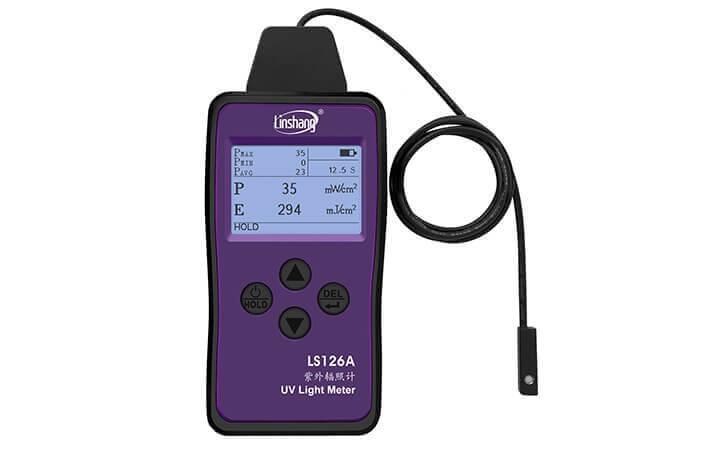

LS126A UV intensity meter is ideal for testing the intensity and energy of UVA band in UV LED light source, mainly contains 365nm, 375nm, 385nm, 395nm, 405nm band, mostly used in curing and exposure industry. The meter has a wide spectral response range, suitable for measuring various wavelengths from 365nm to 405nm. The width of the probe is only 7.2mm, which is applicable for measuring the narrow space where the ordinary probe is not easily placed.
| Parameters | LS126A UV Light Meter |
|---|---|
| Spectral Response | 340nm-420nm, calibrated with 395nm UV LED light source |
| Power Measuring Range | 0 - 20000 mW/cm² |
| Resolution | 1 mW/cm² |
| Energy Measuring Range | 0-9999999mJ/cm2 |
| Record Time | 0-99999s |
| Accuracy (H is the Standard Value) |
H<50mW/cm²：±5mW/cm² H>=50mW/cm²：±10%H |
| Sampling Speed | 2048 times/second |
| Optional Unit | mW/cm²(default), W/cm², W/m² |
| Test Hole Diameter | ￠=3mm |
| Probe Dimension | 36mm * 7.2mm * 4.7mm(L*W*H) |

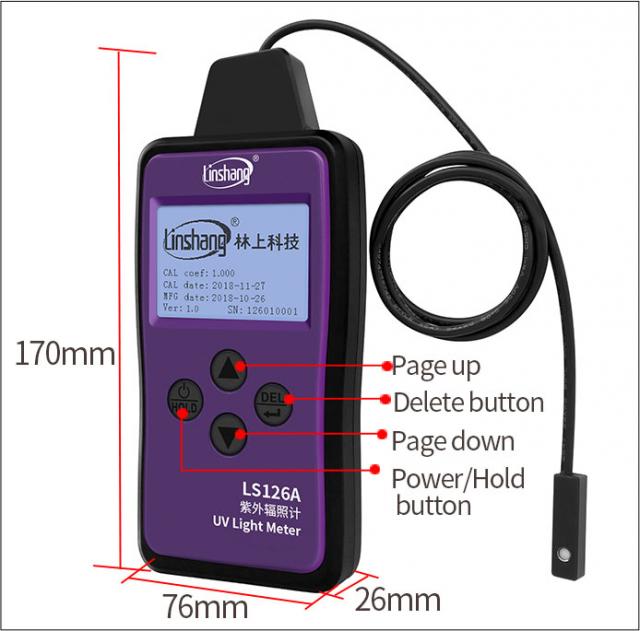

| Host Dimension | 170mm * 76mm * 26mm (L*W*H) |
| Probe Wire Length | 0.8m |
| Weight | About 232g (with battery) |
| Display | 240 * 160 dot matrix LCD |
| Battery | 4 AAA alkaline dry batteries |
