Sauermann Si-TI3 Infrared Thermometer
Si-TI3

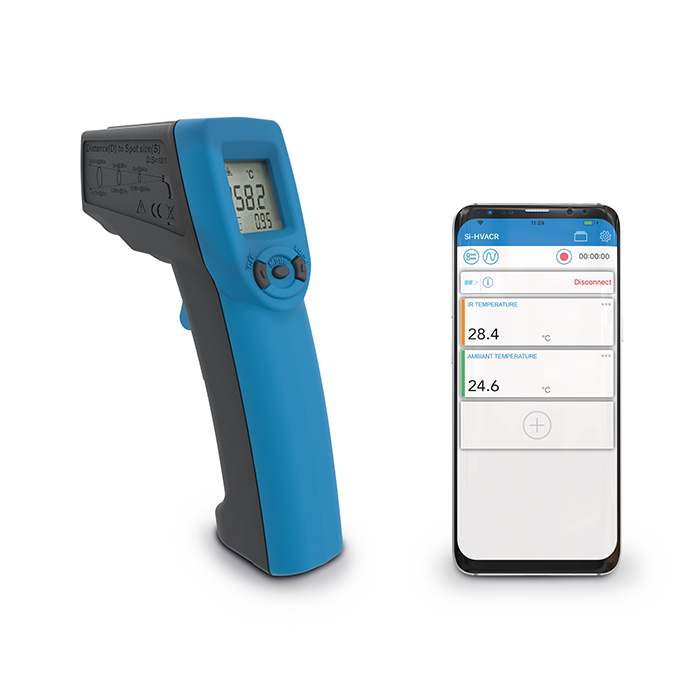

The Sauermann Si-TI3 is a compact handheld infrared thermometer designed for fast, accurate, and non-contact surface temperature measurements. It is particularly suitable for diagnostics, inspection, and maintenance applications where the measured object is hot, hazardous, moving, or difficult to access.
The instrument uses infrared technology to measure surface temperature without physical contact. This makes it suitable for HVAC/R servicing, heating systems, electrical equipment, mechanical components, industrial maintenance, and other applications where conventional contact measurement is impractical or unsafe.

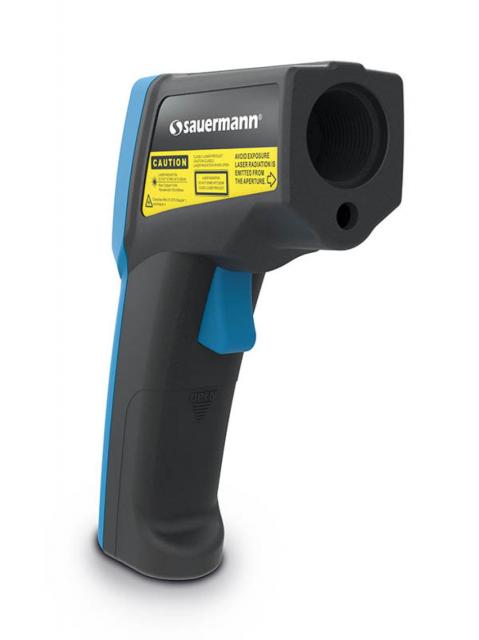

The Si-TI3 features an optical resolution of D:S 12:1, allowing the user to measure relatively small target areas from a practical working distance. The integrated laser targeting system helps accurately identify the measurement point.
The thermometer provides adjustable emissivity, allowing the user to adapt the instrument to different materials and surface characteristics. This improves measurement reliability when working with surfaces that have different infrared emission properties.
A backlit LCD screen provides clear visualization of measured values, even in poorly lit technical environments. The compact palm-sized design makes the instrument easy to carry and convenient for everyday field use.
The Si-TI3 is designed as a low-consumption portable instrument and is suitable for technicians who frequently perform temperature checks during commissioning, inspection, troubleshooting, and preventive maintenance.
Its non-contact measurement capability makes it particularly useful for checking heating and cooling components, ventilation equipment, pipes, electrical cabinets, motors, mechanical systems, refrigeration installations, and surfaces that cannot be safely touched during operation.
The Sauermann Si-TI3 combines compact dimensions, adjustable emissivity, 12:1 optics, laser targeting, and a backlit display in a practical instrument intended for professional temperature inspection and diagnostics.
A carrying bag is included for convenient transport and protection of the instrument during field work.
For more information:
Si-TI3 | Kimo Instruments
| Parameter | Value |
|---|---|
| Measured Parameter | Temperature |
| Units | °C, °F |
| Infrared Temperature Measurement Range | -40.00 to +500.00 °C |
| Ambient Temperature Range | 0.00 to +50.00 °C |
| Display | 3-line display |
| Battery Life | Up to 17 hours |
| Wireless Connection | 1 |
| Power Supply | 2 × LR03 AAA 1.5 V alkaline batteries |
| Protective Cover | No |
| Interchangeable Module | No |
| Length | 112.6 mm (4 7/16") |
| Width | 41.3 mm (1 5/8") |
| Height | 148.2 mm (5 27/32") |
| Weight | 145 g |
| Operating Temperature | 0 to +50 °C |
| Storage Temperature | -10 to +60 °C |
| Applicable Standards | 2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/53/EU RED |
