Senseca LLM-Basic KIT / LLM-Advanced KIT LED LUX

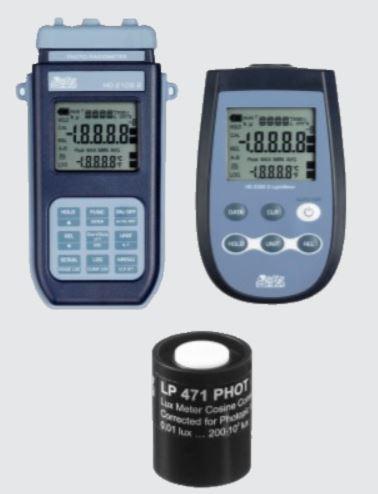

The Senseca LLM-Basic KIT and LLM-Advanced KIT are specialized kits for illuminance (LUX) measurement, equipped with the LP471PHOT photometric probe. Thanks to the high-precision sensor, the kits are suitable for a wide range of applications where reliable illuminance measurement is required.
The kits are available in two versions: Basic and Advanced.
The LLM-Basic KIT (LLM-BK-ACC) includes the portable HD2302.0 photoradiometer, batteries, carrying case, and an LP471PHOT photometric probe supplied with an ACCREDIA Calibration Certificate. This configuration is suitable for direct and portable illuminance measurements.
The LLM-Advanced KIT (LLM-AK-ACC) includes the portable HD2102.2 photoradiometer data logger, batteries, carrying case, DeltaLog9 software, CP23 USB cable, SWD10 power supply, and an LP471PHOT photometric probe with an ACCREDIA Calibration Certificate. This version is designed for applications where, in addition to measurement, data logging, transfer, and subsequent analysis are required.
Both kits are designed for fast and convenient illuminance measurement and are suitable for various laboratory, technical, and inspection applications.
For more information:
LLM-Basic KIT and LLM-Advanced KIT: LED LUX Measurement Kits - Light - Senseca
Technical Specifications – Senseca LLM-Basic KIT / LLM-Advanced KIT
HD2302.0 – Basic Version
For direct measurement and reading of the correct value
| Parameter | Value |
|---|---|
| Material | ABS |
| Protection Rating | IP67 |
| Operating Temperature | -5 to +50 °C |
| Operating Relative Humidity | 0–90 %RH, non-condensing |
| Batteries | 3 × 1.5 V, AA type |
| Battery Life | Approx. 200 hours with 1800 mAh alkaline batteries |
| Measurement Units | lux, fcd, µmol/m²·s, cd/m², W/m², µW/cm², µW/lumen |
HD2102.2 – Advanced Version
With data logging and reporting software
| Parameter | Value |
|---|---|
| Material | ABS, rubber |
| Protection Rating | IP66 |
| Operating Temperature | -5 to +50 °C |
| Operating Relative Humidity | 0–90 %RH, non-condensing |
| Batteries | 4 × 1.5 V, AA type |
| Battery Life | Approx. 200 hours with 1800 mAh alkaline batteries |
| Mains Power Supply | Adapter 100–240 V AC / 12 V DC, 1 A |
| Main Measurement Units | W/m², J/m² |
| Additional Measurement Units Depending on Probe | lux, fcd, lux·s, fcd·s, µW/cm², µJ/cm*, µmol/(m²·s), µmol/m², cd/m², µW/lumen |
| Security of Stored Data | Unlimited retention, independent of battery charge condition |
| Date and Time | Real-time clock |
| Storage Capacity | Total of 38,000 measured values |
| Selectable Logging Interval | 1, 5, 10, 15, 30 s; 1, 2, 5, 10, 15, 20, 30 min; 1 h |
| USB Interface | USB 1.1 / 2.0, electrically isolated |
Kit Ordering Codes
| Code | Contents |
|---|---|
| LLM-BK-ACC | HD2302.0, 3 × 1.5 V alkaline batteries, operating manual, carrying case, LP471PHOT photometric probe, ISO 17025 ACCREDIA Calibration Certificate – L1.50 |
| LLM-AK-ACC | HD2102.2 data logger, 4 × 1.5 V alkaline batteries, operating manual, carrying case, DeltaLog9 software downloadable from the Delta OHM website, CP23 USB cable, stabilized SWD10 power supply 100–240 V AC / 12 V DC, 1 A, LP471PHOT photometric probe with ISO 17025 ACCREDIA Calibration Certificate – L1.50 |
Dimensions
| Parameter | Value |
|---|---|
| Width | 90 mm |
| Height | 185 mm |
| Depth | 40 mm |
Technical Specifications of the LP471PHOT Photometric Probe
| Parameter | Value |
|---|---|
| Measuring Range | 0.10…199.99 lux; …1999.9 lux; …19999 lux; …199.99 × 10³ lux |
| Resolution | 0.01 lux; 0.1 lux; 1 lux; 0.01 × 10³ lux |
| Spectral Range | In accordance with the standard photopic response curve V(λ) |
| Relative Spectral Response | Class B |
| Calibration Uncertainty | <4% |
| f’1 – Conformity with Photopic Response V(λ) | <6% |
| f2 – Cosine Response Error | <6% |
| f3 – Linearity | <1% |
| f4 – Instrument Reading Error | <0.5% |
| f5 – Fatigue | <0.5% |
| α / f6(T) – Temperature Coefficient | <0.05 %/K |
| Drift After 1 Year | <1% |
| Operating Temperature | 0 to +50 °C |
| Reference Standard | CIE No. 69 |
