The Senseca TP32MTT.03.C is an air temperature probe for outdoor monitoring, designed for meteorological and environmental applications. It uses a 4-wire Pt100 sensor, Class 1/3 DIN, to provide reliable ambient air temperature measurement under exposed outdoor conditions.

To reduce the influence of direct solar radiation, the probe is fitted with a radiation shield made from UV-resistant ASA technopolymer with low thermal conductivity and high reflectivity. The sensor is positioned inside the shield to minimize direct radiation exposure and support representative air temperature readings.

The TP32MTT.03.C operates over a temperature range of -40 to +85 °C and provides IP67 protection, making it suitable for long-term outdoor installation.

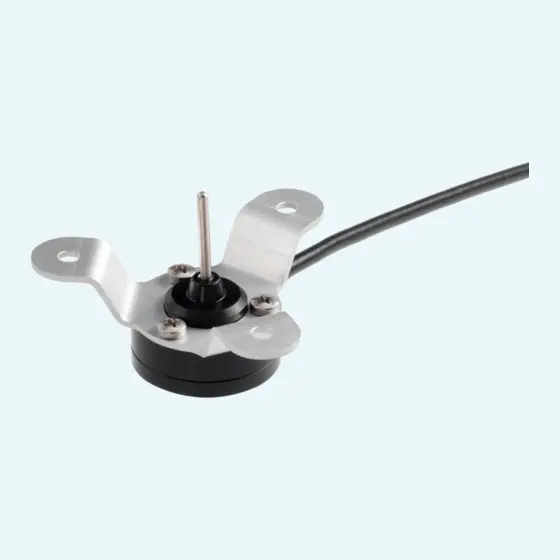

The probe is supplied with a mounting bracket made of white powder-coated Anticorodal aluminium. It can be installed on a flat support using the HD9007T29.1 bracket or on a Ø25…44 mm mast using the HD9007T29K mounting kit.

Electrical connection is provided through a 4-core cable with open wire ends, available in 2 m, 5 m, or 10 m lengths, allowing flexible integration into different measurement systems.
